Mediana HeartOn A15 Defibrillator AED Semi Automatic

Mediana HeartOn A15 Defibrillator AED Semi Automatic

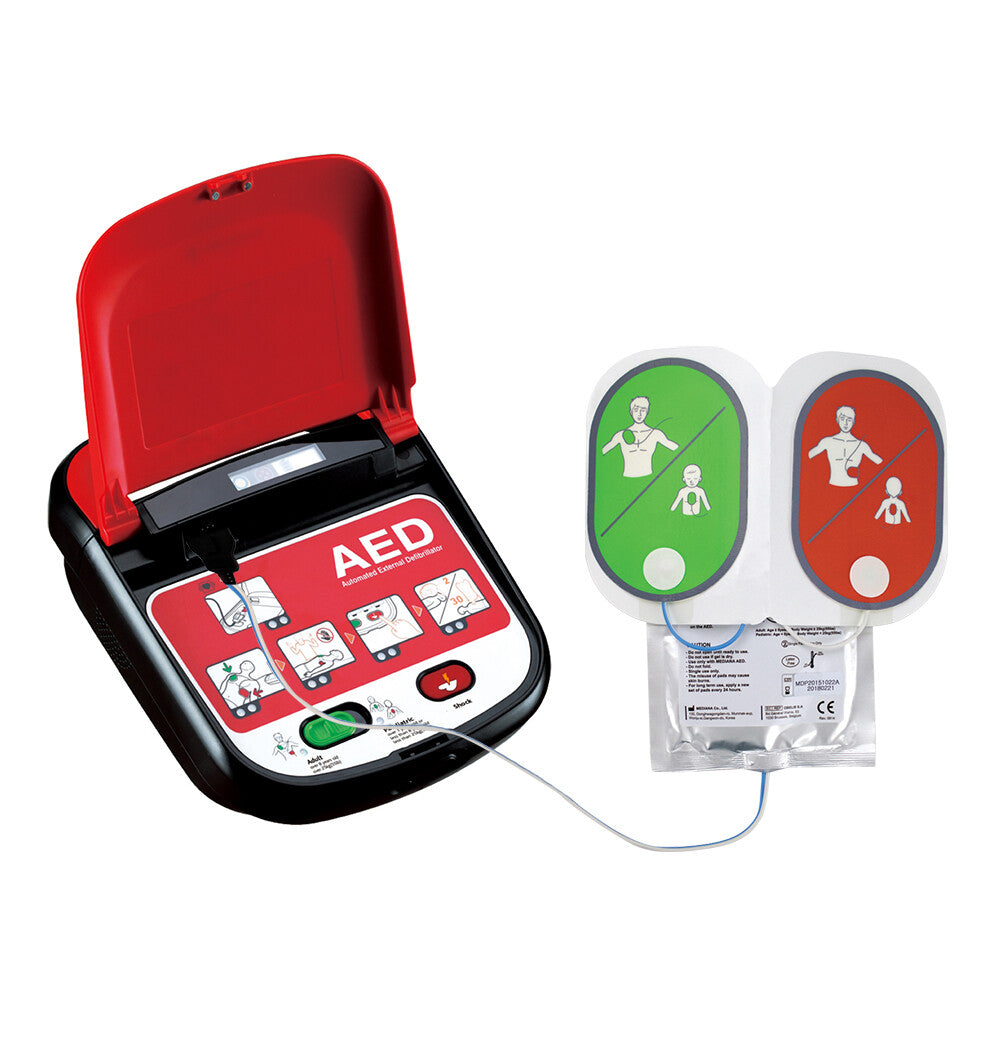

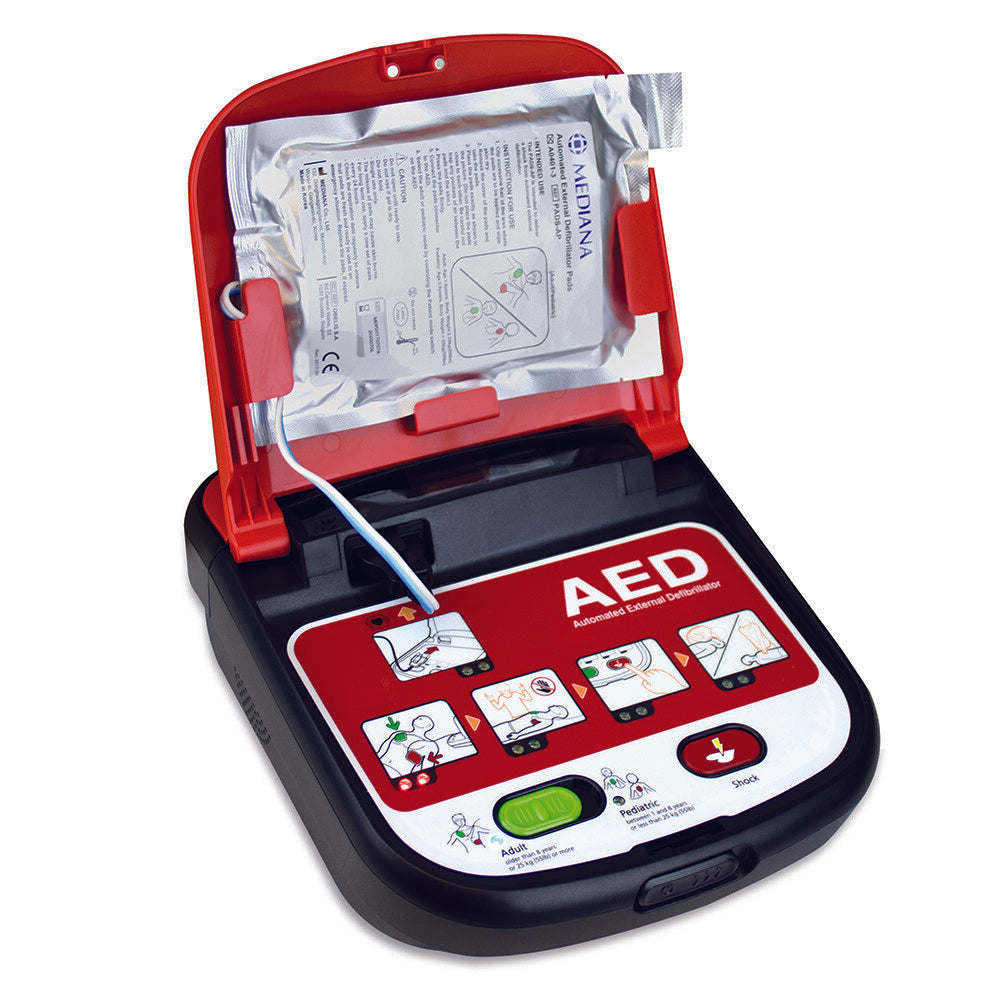

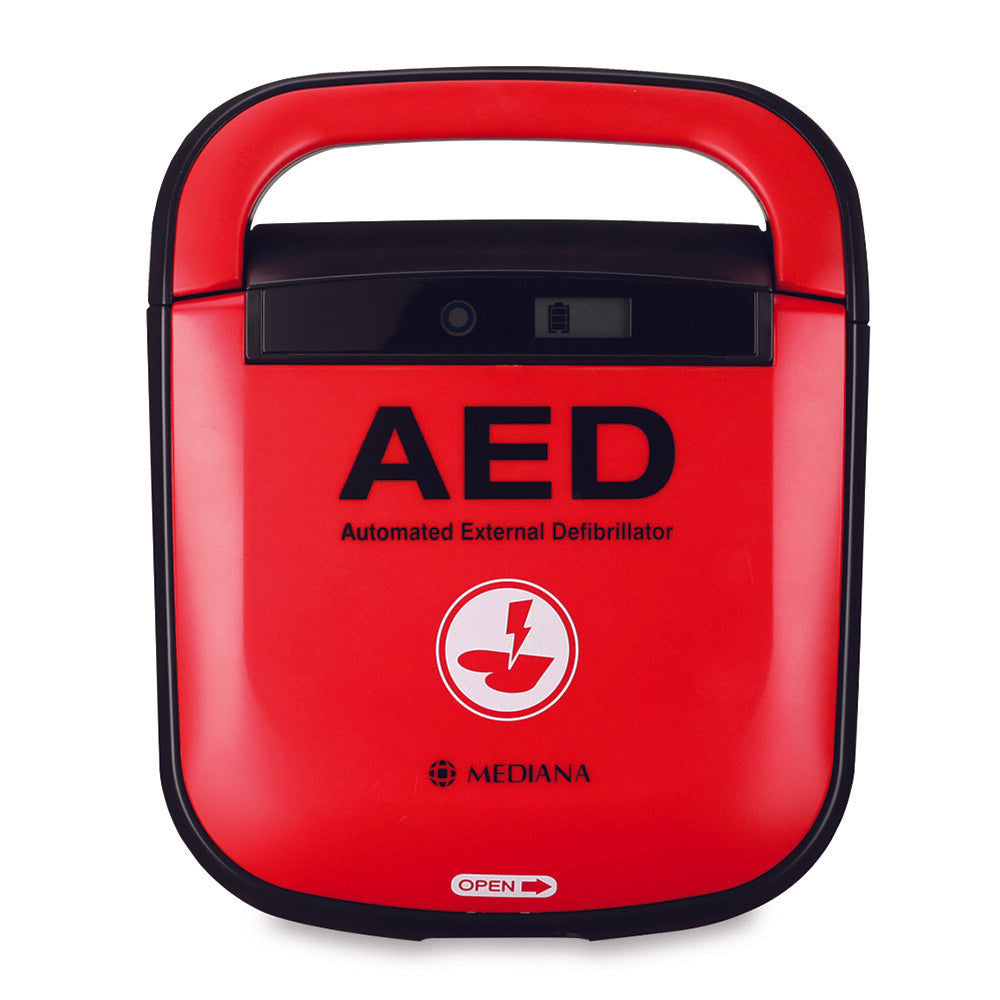

The Defibrillator unit is supplied with a protective outer cover. When the unit lid is opened using the easy-slide switch, the machine switches itself on automatically. The defibrillator pads are pre-connected and stored in a foil pouch that can be opened when ready to apply to the casualty. A combination of LED indicator lights and clearly spoken audible voice prompts, make the AED simple and safe to use even by untrained persons. Visual icons are clearly defined to assist the user, and the clever addition of a switch to change the machine from Adult to Paediatric mode (or vice-versa), means the pads are suitable for both adult and child.

Contents include –

1 x Mediana HeartOn A15 ED
1 x Adult/Child Electrode Pads
1 x Disposable Lithium Battery (5 year standby life)

1 x Carry bag

Key Features
• Instant switch from Adult to Paediatric.
• Suitable for a wide range of workplaces including schools and places where children are present.
• Automatic switch on when lid opened.
• Pads pre-connected ready for use.
• Pads fit both Adults and Children
Semi-automatic operation (requires user to push shock button when prompted)
5 Year Warranty on the AED unit
Battery standby life 5 years from date of manufacture (inserted in the AED) 200 shock capacity of 10 hours of operating time
Adult/Child electrode pads 2 years standby
Analysis/Charge Time: 10 seconds or less
LCD indicators showing unit status, battery status and temperature status
Self tests every 24hrs, weekly and monthly. Power on self test and battery insertion test. Test result LCD displays O/X
IP Rating 54
Drop tested 1 meter

A15_Operating Manual
